The short answer: ANSI/ESD S20.20 is the industry standard for building an electrostatic discharge control program for electronics manufacturing and handling. It applies to activities that make or handle ESD-sensitive items susceptible to damage from discharges of 100 volts human body model (HBM) or greater, and it requires a documented program plan, training, compliance verification, and three technical building blocks: grounding and equipotential bonding, personnel grounding, and an ESD protected area (EPA). It also sets the numbers the program has to meet, including a wrist strap system resistance below 3.5 x 10^7 ohms and a flooring and footwear system that keeps a person below 1.0 x 10^9 ohms to ground and under 100 volts of body voltage. Those limits live in S20.20 itself, not in the test methods used to measure them.
What is ANSI/ESD S20.20 and who does it cover?
ANSI/ESD S20.20 is the ESD Association's program standard for protecting electrical and electronic parts, assemblies, and equipment from static damage during manufacturing, processing, assembly, installation, and handling. It covers organizations that handle ESD-sensitive (ESDS) items susceptible to damage from discharges of 100 volts HBM or greater, which is most modern semiconductor and printed-circuit assembly work, as the 2021 revision summary describes. The standard does not cover electrically initiated explosive devices, which fall under separate rules.
That scope threshold matters operationally, because component sensitivity has been falling as geometries shrink. A part rated for 100 volts HBM can be degraded by a discharge no one in the room can perceive, since the human body only begins to feel a static discharge in the range of several thousand volts. The program exists precisely because the hazard is invisible: it cannot be managed by feel, only by controlling charge generation and providing a reliable path to ground, then verifying that path keeps working.
What does S20.20 actually require?
S20.20 requires a documented ESD control program plan supported by two management pieces and three technical pieces. The management side is training and compliance verification; the technical side is grounding and equipotential bonding, personnel grounding, and the ESD protected area. A program that installs mats and wrist straps without the plan, the training, and the verification schedule does not meet the standard, because S20.20 is written around proving the controls work over time, not around owning the equipment.
The program plan is the spine. It has to define the ESD control measures the organization uses, the required technical elements, and a compliance verification plan that checks those elements against their limits on a set schedule. Training has to cover personnel who handle ESDS items so they understand the program and their role in it. Compliance verification is where the plan earns its keep: measured evidence, taken periodically, that each ground path still performs, because a wrist strap cord fails silently and a floor loses conductivity as it wears and gets contaminated.
What are the required limits, and where do they come from?
S20.20 sets specific electrical limits for each grounding path, and those limits belong to S20.20, not to the test methods used to measure them. This is the distinction competitors get wrong most often: ANSI/ESD STM7.1-2020 is a standard test method that provides procedures for measuring the electrical resistance of floor materials, and it sets no pass or fail number by itself. The number a floor has to meet is specified in S20.20. Cite the limit to S20.20 and the measurement to the STM method, and the page stays defensible.
The table below gives the core required limits and the method used to measure each. Wrist straps ground a seated operator; flooring and footwear ground a standing or moving one; worksurfaces dissipate charge from the bench. Each has a number in S20.20 and a documented way to check it.
| Program element | S20.20 required limit | Measured with |
|---|---|---|
| Personnel grounding: wrist strap system | Total system resistance less than 3.5 x 10^7 ohms (35 megohms), person plus strap plus cord | Compliance verification of the worn system |
| Personnel grounding: flooring and footwear system | System resistance to ground less than 1.0 x 10^9 ohms and body voltage under 100 volts | ANSI/ESD STM97.1 (resistance) and STM97.2 (body voltage) |
| Flooring, as a material | Meets the S20.20 resistance limit for the chosen ground path | ANSI/ESD STM7.1-2020 (floor resistance) |
| Worksurface | Resistance to a groundable point at or below 1.0 x 10^9 ohms | Worksurface resistance test method |
| Grounding and equipotential bonding | ESD control elements bonded to a common point ground so they sit at the same potential | Continuity and resistance verification |
Read the table as a system rather than a parts list. A wrist strap that measures below 3.5 x 10^7 ohms only protects the operator if the mat, the strap, and the bench are all bonded to the same ground, which is what the equipotential bonding requirement is for. The limits are individually meaningless and collectively decisive.
What is an ESD protected area, and how do you build one?

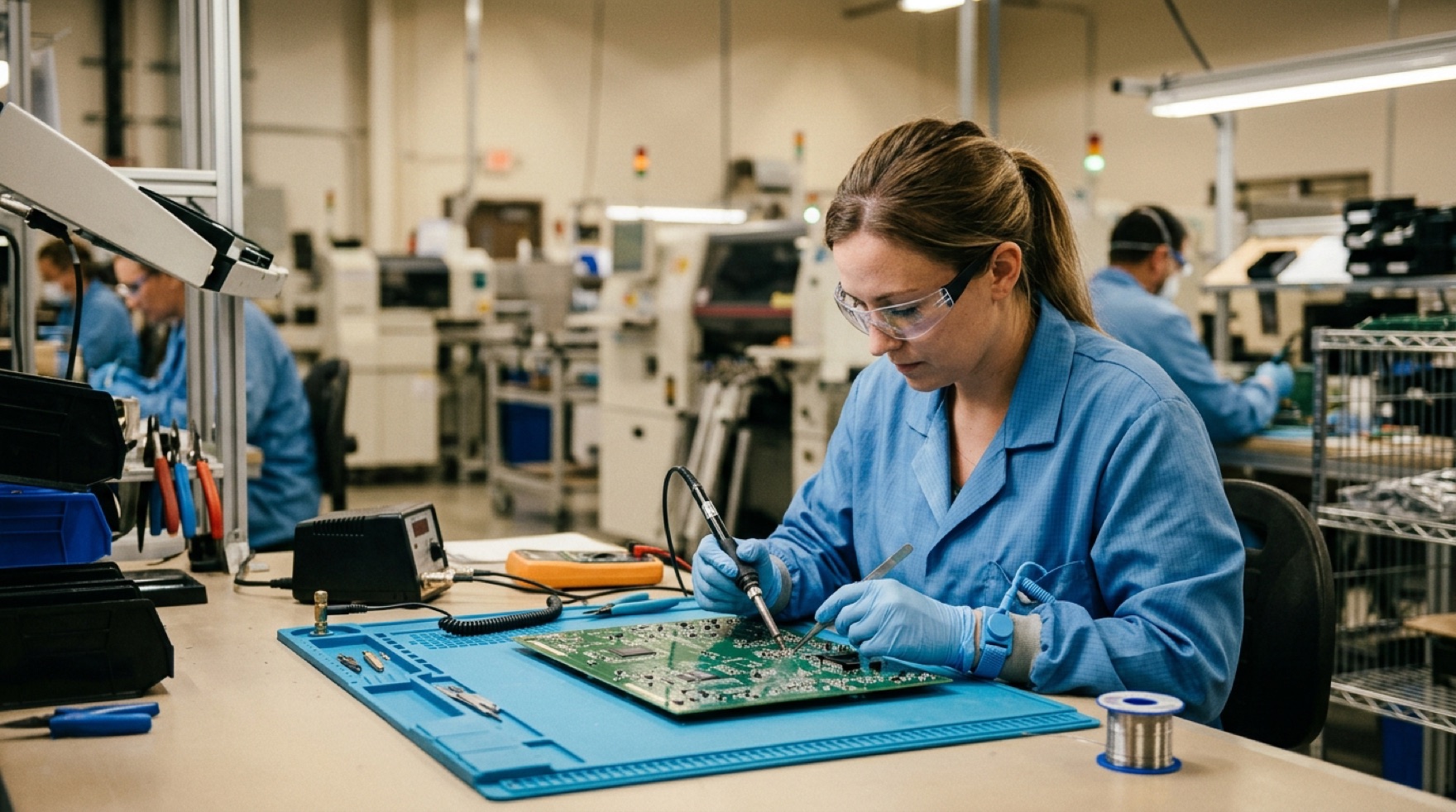

An ESD protected area (EPA) is a defined space where all surfaces, people, and handling are grounded or bonded to the same potential so that ESDS items can be handled safely. It is the physical expression of the program: inside the EPA, every conductor a charged item might touch, including the operator, is tied to a common point ground, and everything else is either removed or neutralized. Outside it, ESDS parts stay inside static-shielding packaging.
Building one starts with the ground path and works outward. Establish a common point ground and bond the worksurface, the flooring or the operator's wrist strap, and any tools and fixtures to it, so the whole area is equipotential. Remove or replace non-essential insulators, the ordinary plastics and packaging that hold a charge no amount of grounding can drain, and where a necessary insulator or an isolated conductor remains, control it with an ionizer that neutralizes the charge in the air. Mark the boundary, gown and handle to the program, and check the whole thing against the limits on the compliance verification schedule.
How do you protect ESDS parts outside the EPA?
Outside the ESD protected area, parts are protected by ESD packaging rather than by grounding, because there is no controlled ground path to rely on once an item leaves the bench. A grounded operator and a bonded worksurface only exist inside the EPA, so the moment an ESDS item is moved, stored, or shipped, the package becomes the sole barrier between it and a stray charge. S20.20 addresses this transition, requiring that ESDS items be protected when they are handled or transported outside the controlled area.
The package does two jobs, and it helps to name them separately. Static-dissipative and conductive materials keep the package itself from generating or holding a charge against the part, while a static-shielding layer, typically a metallized film, blocks an external discharge from reaching the contents, the way a shielding bag protects a board in transit. A part that is fully grounded on the bench and then dropped into an ordinary plastic bag has simply been moved from a controlled environment into an uncontrolled one, which is why the handoff into and out of the EPA is where a program either holds or leaks.
Why does compliance verification matter more than the initial install?
Compliance verification matters most because ESD controls fail silently and gradually, and the only way to know a ground path still works is to measure it. A wrist strap cord develops an internal break, a static-dissipative floor loses conductivity under wax or wear, a heel grounder shifts out of contact: none of these announces itself, and the operator handling a 100 volt HBM part has no way to feel that the protection is gone. S20.20 requires a compliance verification plan for exactly this reason, so the program tests its own controls rather than assuming they hold.
Set the verification on the risk. Wrist straps, the most failure-prone single element, are typically checked at the start of each shift or continuously monitored, while floors, worksurfaces, and ionizers are checked periodically against their S20.20 limits and the results recorded. The record is the point: a dated log showing each ground path measured within limits is what demonstrates the program works, and it is the difference between a program that controls an invisible hazard and one that only looks like it does.
