The short answer: There is no federal OSHA ergonomics standard for quality inspection, so OSHA addresses the awkward postures, static muscle loading, and eye strain of microscope, gauging, and vision-system work as recognized hazards under the General Duty Clause, Section 5(a)(1) of the Occupational Safety and Health Act. The practical design benchmarks come from advisory and consensus guidance: OSHA's own laboratory ergonomics fact sheet for microscope work, ANSI/HFES 100-2007 for computer and vision-inspection workstations, and CCOHS recommended illuminance levels for fine visual tasks. Bring the work up to the inspector, light the task to its difficulty, set a neutral seated or standing posture, and build movement into the shift.
Does OSHA have an ergonomics standard for inspection and gauging work?
No. There is no federal OSHA ergonomics standard: OSHA issued one in 2000 and Congress rescinded it in 2001, so the agency now addresses ergonomic hazards under the General Duty Clause, Section 5(a)(1) of the OSH Act, which requires employers to keep the workplace free from recognized serious hazards. OSHA's own ergonomics enforcement FAQ states that employers must keep their workplaces free from recognized serious hazards, including ergonomic hazards, whether or not there are voluntary guidelines, and that the agency assesses musculoskeletal disorder (MSD) issues through complaints, referrals, and targeted inspections.
That means the design targets for an inspection bench come from advisory and consensus documents, not from an enforceable rule. ANSI/HFES 100-2007, Human Factors Engineering of Computer Workstations, is a voluntary consensus standard for the design of displays, input devices, and furniture, and it is the benchmark for monitor-based and vision-system inspection stations. OSHA's laboratory safety ergonomics fact sheet (FS-3462), which covers microscope work directly, says plainly that the guidance is advisory in nature and is not a standard or a regulation. For safety leaders the implication is concrete: you cannot satisfy the General Duty Clause with a checkbox. You satisfy it by assessing the real MSD exposure in inspection tasks and controlling it, and these consensus documents are what an inspector, or a plaintiff, will measure the station against.
Why does quality inspection cause musculoskeletal disorders and eye strain?
Inspection and gauging injure through sustained awkward postures and static muscle contraction, not through heavy force. An inspector held in one position, neck flexed over the eyepieces, shoulders rounded, forearms pressed on a hard bench edge, keeps muscles loaded and still for long stretches, which restricts blood flow and inflames tendons. OSHA's laboratory ergonomics fact sheet lists working at microscopes, along with pipetting, using cell counters, and keyboarding, among the routine tasks that put workers at risk for repetitive motion injuries that develop over time.
The specific exposures on an inspection floor are recognizable. Microscope and optical-comparator work forces forward head and neck flexion and a fixed trunk. Handling calipers, micrometers, and go/no-go gauges adds repetitive fine pinch and sustained reach outside the neutral envelope. Leaning into a granite surface plate or a first-article layout creates contact stress where the forearms and ribs meet the edge. Layered on top is the visual load of resolving small features, low-contrast surface finish, hairline cracks, and scratches, which drives eye strain and tempts the inspector to crane closer. These are cumulative trauma exposures, so the cost shows up weeks later as neck, shoulder, and upper-back symptoms rather than as a single event. It is also an operational cost: a fatigued inspector working in poor posture and poor light misses defects, so the same conditions that injure the worker degrade the inspection itself.
How should a microscope inspection station be set up?

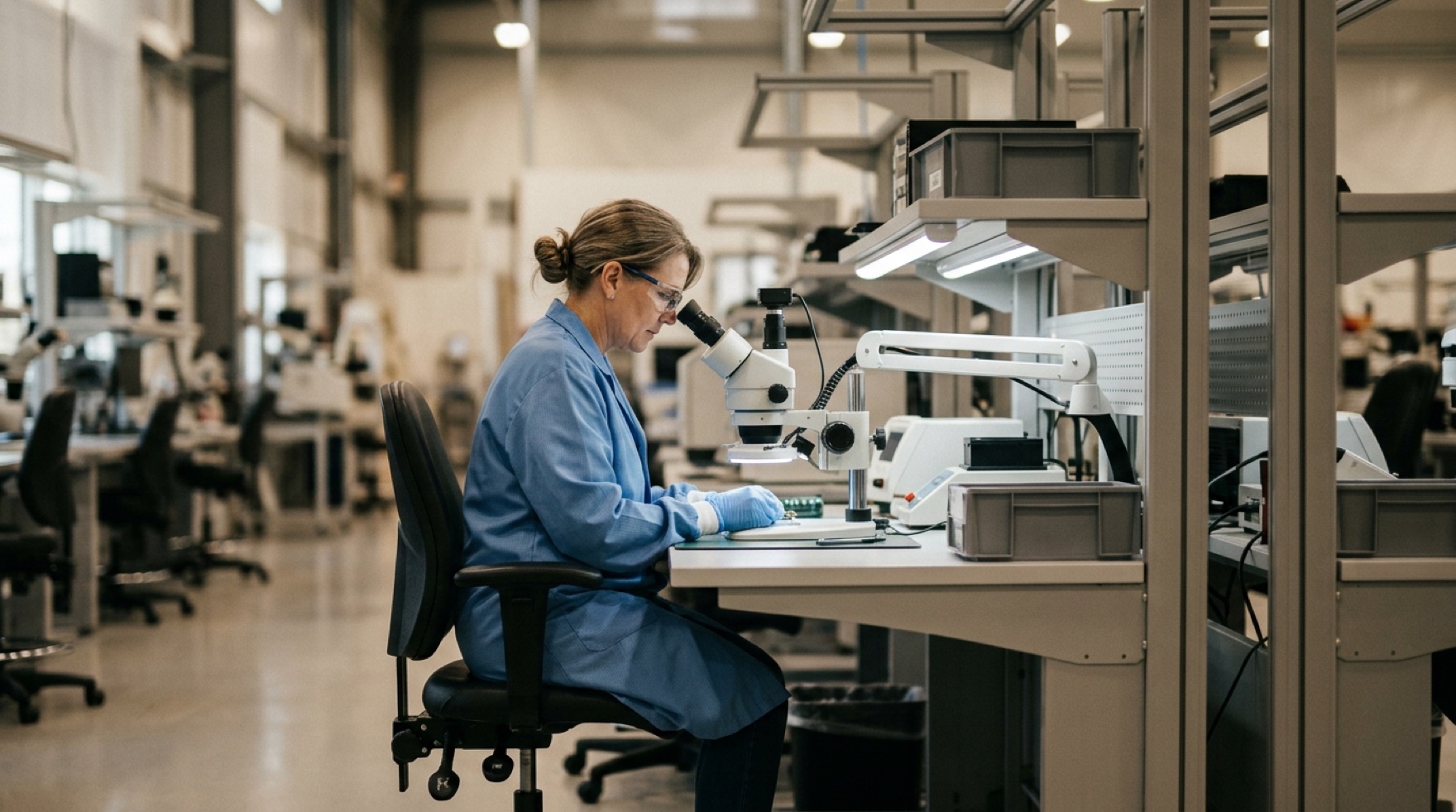

Bring the microscope up to the inspector's eyes rather than bending the inspector down to the eyepieces. OSHA's laboratory ergonomics fact sheet advises adjusting the chair, workbench, or microscope as needed to maintain an upright head position, and elevating, tilting, or moving the microscope to the edge of the counter to avoid bending the neck. The whole aim is to move the work to the operator, because telling an inspector to sit up straight over a scope that is too low does not change the posture the equipment forces.
OSHA's microscope recommendations translate into a short setup rule for the station. Sit close to the work surface and keep elbows close to the sides. Pad the forearms and the bench edge and avoid leaning on hard edges, which removes the contact stress. Use adjustable eyepieces, or mount the microscope on a 30-degree angle stand for easier viewing, so the head stays upright. Keep scopes clean and repaired so the inspector is not straining to resolve a dirty field. Then manage the exposure over time: spread microscope work throughout the day and share it among several people so no one holds the static posture for a full shift. For breaks, OSHA advises that every 15 minutes the inspector close the eyes or focus on something in the distance, and every 30 to 60 minutes get up to stretch and move. The control here is design plus rotation, not willpower.
How much light does inspection and gauging work need?
More than an office, and rising with the difficulty of the task. General bench inspection needs roughly 500 to 1,000 lux, and the level should climb toward several thousand lux for fine, low-contrast examination, according to the recommended illuminance levels published by CCOHS in its lighting ergonomics survey. These are consensus advisory levels rather than an OSHA requirement: general industry has no specific illuminance rule for most inspection tasks, so poor lighting is handled as a recognized hazard under the General Duty Clause and measured against guidance like this.
The harder the feature is to resolve, the more light the task needs, and the more it benefits from supplementary light at the point of use rather than a brighter ceiling. Match the illuminance to the work using the CCOHS bands below, add a task lamp at the bench for very small or low-contrast features, and control glare and veiling reflections off gauges, polished parts, and glossy surface finishes, which wash out the very contrast the inspector is trying to read. Remember that older eyes need more light for the same task, so set levels for the people actually doing the work.
| Inspection task (CCOHS task descriptors) | Recommended illuminance |
|---|---|
| Medium-detail bench or machine inspection and assembly | 500 to 1,000 lux |
| Difficult inspection and difficult assembly tasks | 1,000 to 2,000 lux |
| Prolonged, exacting, very small, low-contrast work | 2,000 to 5,000 lux |
| Very detailed and very prolonged examination | 5,000 to 10,000 lux |
Illuminance is measured in lux with a light meter, and CCOHS notes that adequate general lighting usually falls between 500 and 1,000 lux measured about 76 cm above the floor. Specifying the light to the task, then adding task lighting where the ceiling cannot reach the standard, is what lets an inspector read fine detail without leaning in.
How do you prevent MSDs across a seated or standing inspection shift?
Design the station for neutral posture, then build movement into the shift so no posture is held too long. A fully adjustable chair with good back support, feet supported on the floor or a footrest, the work kept within the reach envelope, and the bench height matched to the task lets the inspector sit upright and supported. OSHA's fact sheet advises varying activities, changing position, and taking short breaks every 20 minutes to rest muscles and restore circulation, and CCOHS's guidance on prolonged sitting recommends about five minutes of moderate activity, such as walking, for every 40 to 50 minutes seated.
Give inspectors the option to alternate sitting and standing. The revision of ANSI/HFES 100 explicitly covers seated, sit-stand, and standing work postures for workstations used routinely, which is a reasonable model for a gauging bench or a coordinate measuring machine (CMM) station where an inspector stands. For standing inspection, supportive footwear and a cushioned anti-fatigue mat reduce the static standing load, though matting sits below elimination and engineering in the hierarchy of controls: it is one control that makes standing more tolerable, not a substitute for a well-set bench or for letting the inspector sit. When handling gauges, keep the wrist in a neutral, straight position rather than deviated, and pace first-article and gauge repeatability work so it is not hours of unbroken static loading. Job rotation off the microscope and off any single fixed task is the control that most reliably keeps cumulative exposure below the level where symptoms start.
Fitting the inspection station to the inspector
Quality inspection has no ergonomics rule to satisfy, which makes it easy to leave the bench however it was built and treat the resulting neck and shoulder complaints as unavoidable. They are not. The General Duty Clause obliges the employer to control the recognized MSD and eye-strain hazards of the work, and the consensus guidance is specific about how: bring the microscope up so the head stays upright, light the task to its difficulty using the CCOHS bands and a task lamp, set a neutral seated or standing posture on an adjustable chair or bench, and build eye breaks, movement breaks, and job rotation into the shift. Those measures protect the inspector's neck, shoulders, and vision, and because a comfortable, well-lit inspector catches more defects, they protect the accuracy of the inspection at the same time.
